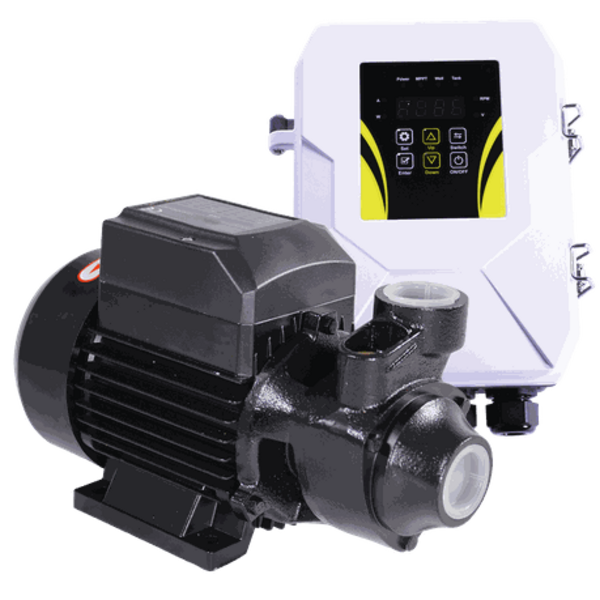

Boetmann Solar Booster Pump – 24VDC – 250W

Boetmann Solar Booster Pump - 24VDC - 250W

Features:

• Max Flow: 2000L/hour
• Max Head: 30 meters
• Max Bar Pressure: 3 Bar
• 25mm inlet and outlet pipe size
• 250W Power
• Brushless motor for reliable and efficient operation
• MPPT controller for optimal energy usage
• Run dry protection to safeguard pump from damage
• Soft start feature for smoother operation
• Over and under current protection to prevent electrical issues
• Variable speed control for precise performance

Specifications:

• Voltage: 24V DC (VOC Max: 48V)
• Max Input Amp: 17A
• Motor: Brushless with NSK bearings

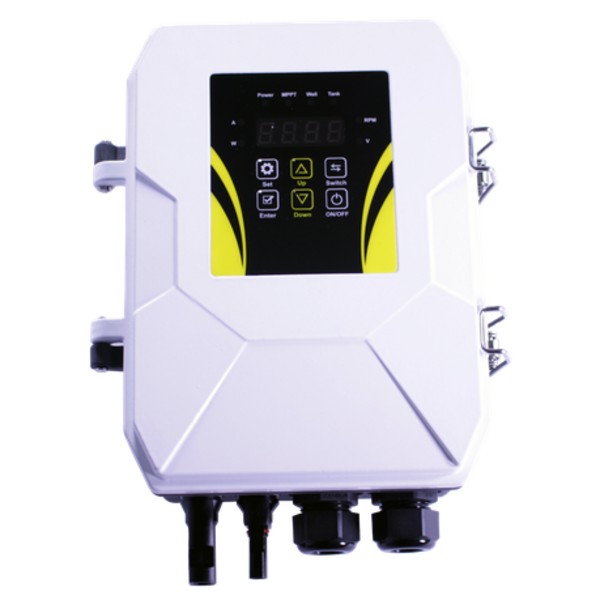

• Control Box: 24V
• Tank Level Probe included for accurate water level monitoring
• Non-return valve: 25mm

What's in the box:

• 1 x 250W Pump and Motor
• 1 x Control Box 24V
• 1 x Tank Level Probe
• 1 x 25mm Non-Return Valve

Extra Installation Parts Required (not included):

• Pressure Switch
• Solar Panel (375W or greater with VOC <48VDC)
• Solar Cable
• MC4 Connectors
• Pipes and Fittings

The Boetmann Solar Booster Pump - 24VDC - 250W is an efficient and reliable pump designed for off-grid solar systems, perfect for agricultural, residential, and industrial water pumping applications. With a max flow of 2000L/hour and a max head height of 30 meters, this pump is capable of handling a variety of water pumping tasks with ease. Its brushless motor and NSK bearings ensure long-lasting performance, while the MPPT controller optimizes energy usage to provide reliable and efficient operation.

Built with safety in mind, this pump comes equipped with run dry protection, over and under current protection, and a soft start feature to prevent damage to the system and ensure smooth operation. The variable speed control allows for flexible performance, adapting to varying conditions and requirements. This pump is designed to be powered by solar energy, requiring a 375W solar panel or higher for optimal performance, and it is compatible with a range of installation setups.

Ideal for applications that require a robust, solar-powered solution, the Boetmann Solar Booster Pump offers a sustainable, energy-efficient way to power your water systems without relying on traditional electricity sources.
