Boetmann Solar Submersible / Borehole Pump with Control Box – 1200W – 180m

Boetmann Solar Submersible / Borehole Pump with Control Box - 1200W - 180m

Features:

• Permanent magnet, brush-less motor for enhanced efficiency and energy savings
• NSK bearing with alloy mechanical seal for long-lasting durability
• Intelligent water shortage protection to prevent dry running damage
• MPPT function maximizes solar energy utilization
• Automatic Stop/Start for efficient operation
• Soft start protection increases the lifespan of components
• Overcurrent protection for safety and reliability
• Max Water Submersion Depth: 50m
• Pump Isolation: IP68 (fully waterproof)
• Motor Speed: 500 – 4000rpm
• Discharge Size: 20mm
• Power: 1200W
• Voltage: 72V DC
• VOC Max: 144V DC

Specifications:

• Max Flow: 1600L/h
• Max Head: 168m
• Water Delivery Capacity at Varying Head Heights:
  • 0m – 1600L/h
  • 85m – 1500L/h
  • 110m – 1250L/h
  • 130m – 1000L/h
  • 145m – 750L/h
  • 155m – 500L/h
  • 168m – 250L/h

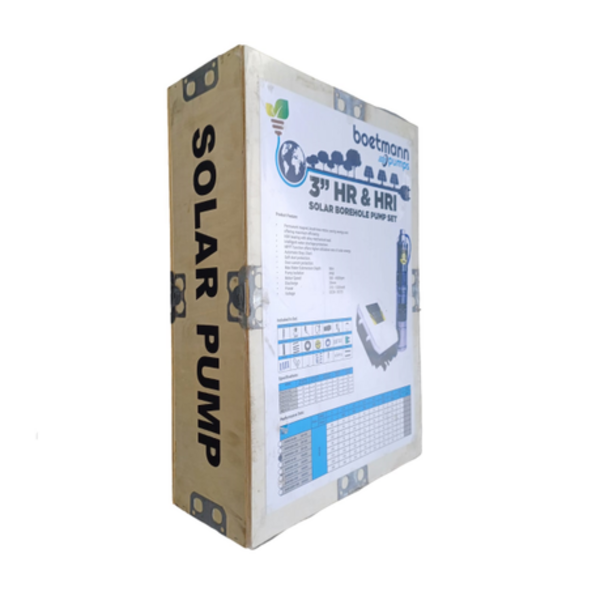

What's in the box:

• 1 x 1200W Stainless Steel Solar Pump
• 1 x Control Box
• 1 x Spare Rotor
• 2 x Floats
• 1 x Waterproof Tape
• 1 x Insulation Tape
• 1 x Instruction Manual

The Boetmann Solar Submersible / Borehole Pump with Control Box - 1200W - 180m is a powerful and efficient water pumping solution designed for off-grid and remote locations. This solar-powered pump provides high performance, making it perfect for agriculture, irrigation, livestock watering, and domestic water supply in areas with limited or no electricity access.

Built with permanent magnet, brush-less motor technology, this pump offers superior efficiency, reducing energy consumption while maximizing output. The MPPT (Maximum Power Point Tracking) function ensures optimal solar energy conversion, even in variable sunlight conditions. Its automatic stop/start functionality and intelligent water shortage protection ensure safe and uninterrupted operation.

Designed for deep borehole applications, this pump can lift water up to 168m with a maximum flow rate of 1600L/h. It is IP68-rated, making it fully waterproof and submersible up to 50m, ensuring long-term reliability in extreme conditions. The soft start protection minimizes power surges, while the overcurrent protection safeguards the system against electrical overloads.

This lightweight and compact solar borehole pump is easy to install and transport, making it suitable for mobile applications. The included control box simplifies system management, allowing for precise control and monitoring. Additionally, the spare rotor, floats, waterproof tape, and insulation tape make installation hassle-free and ready for immediate use.
