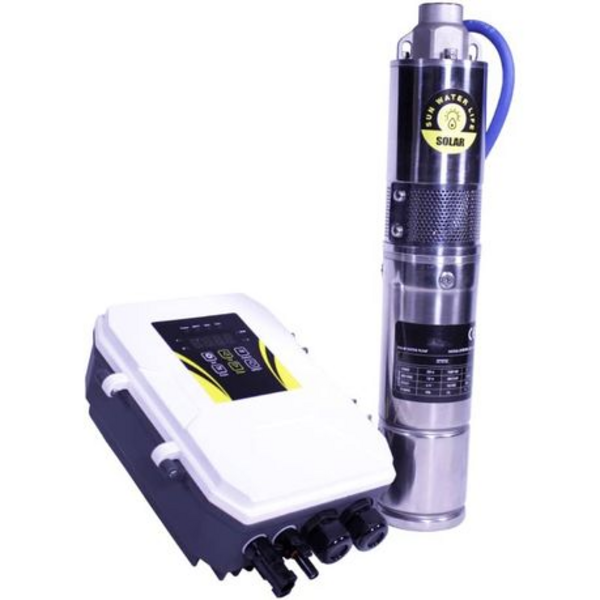

Boetmann Solar Submersible / Borehole Pump with Control Box – 300W – 100m

Boetmann Solar Submersible / Borehole Pump with Control Box - 300W - 100m

Features:

• Permanent magnet, brush-less motor for superior energy efficiency
• NSK bearing with alloy mechanical seal for enhanced durability
• Intelligent water shortage protection for system safety
• MPPT function for higher solar energy utilization
• Automatic Stop/Start for ease of use
• Soft start protection to reduce wear
• Over current protection to safeguard components
• Max Water Submersion Depth: 50m
• Pump Isolation: IP68 (fully waterproof)
• Motor Speed: 500 - 4000rpm
• Discharge size: 20mm
• Power: 300W
• Voltage: 48V DC
• VOC Max: 96V DC

Specifications:

• Max Flow: 1600L/h
• Max Head: 95m
• Water Delivery Capacity at Varying Head Heights:
  • 0m - 1600L/h
  • 27m - 1500L/h
  • 45m - 1250L/h
  • 65m - 1000L/h
  • 78m - 750L/h
  • 85m - 500L/h
  • 95m - 250L/h

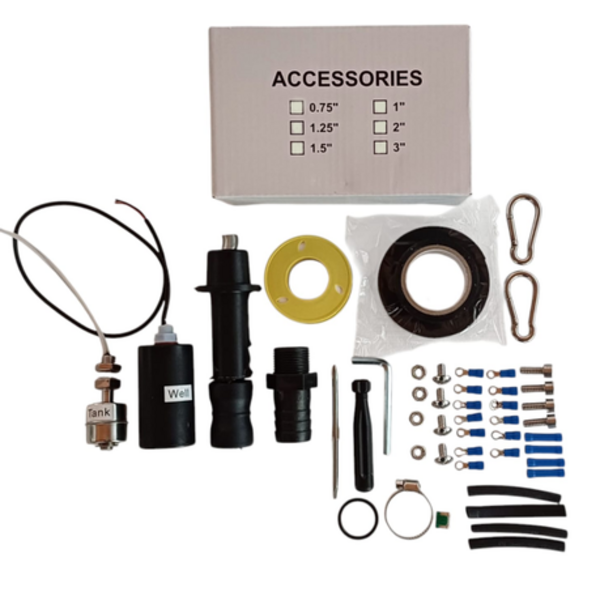

What's in the box:

• 1 x 300W Solar Pump
• 1 x Control Box

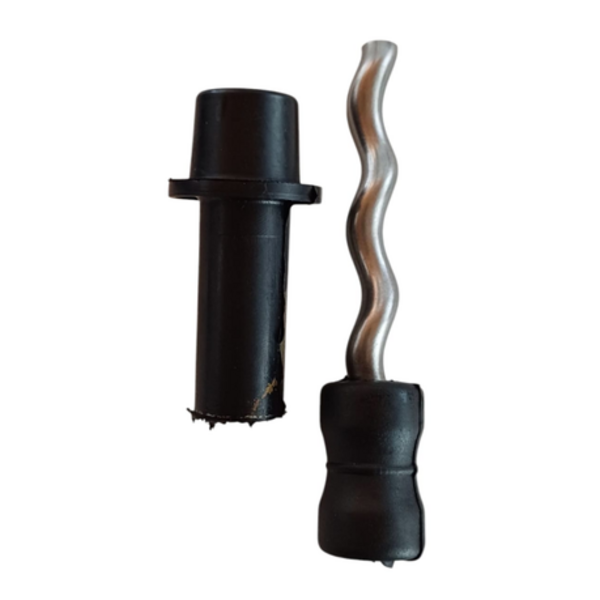

• 1 x Spare Rotor

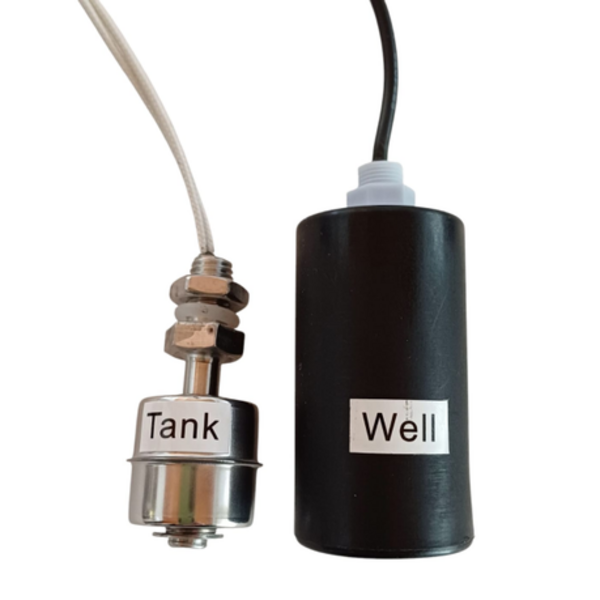

• 2 x Floats
• 1 x Waterproof Tape
• 1 x Insulation Tape
• 1 x Instruction Manual

The Boetmann Solar Submersible / Borehole Pump with Control Box - 300W - 100m is designed for use in remote, off-grid locations, where reliable and sustainable water pumping is essential. Whether you're dealing with irrigation, livestock watering, or general water distribution, this solar-powered pump provides an efficient solution for applications in arid areas with limited access to conventional power sources.

Powered by a 300W permanent magnet, brush-less motor, this pump delivers exceptional energy efficiency, ensuring optimal performance while minimizing energy consumption. It boasts a maximum flow rate of 1600L/h and a maximum head of 95m, making it suitable for a wide range of water supply needs.

Equipped with an MPPT function, the pump maximizes solar energy usage, ensuring higher efficiency even in varying sunlight conditions. The intelligent water shortage protection and over current protection safeguard both the pump and your solar system, while the soft start protection reduces the strain on the motor, helping to prolong the lifespan of the pump.

With its IP68-rated waterproof protection, this pump can be safely submerged up to 50m, making it highly reliable in a variety of water conditions. The system also includes essential components such as a spare rotor, floats, waterproof tape, and insulation tape, making installation simple and ensuring that you have everything you need for trouble-free operation.

The Boetmann Solar Submersible / Borehole Pump is perfect for those seeking an eco-friendly and energy-efficient solution to meet their water pumping needs in remote or off-grid locations.
