Boetmann Solar Submersible / Borehole Pump with Control Box – 750W – 140m

Boetmann Solar Submersible / Borehole Pump with Control Box - 750W - 140m

Features:

• Permanent magnet, brush-less motor for maximum efficiency and energy savings
• NSK bearing with alloy mechanical seal for enhanced durability and longevity
• Intelligent water shortage protection to prevent damage and improve reliability
• MPPT function ensures a higher utilization rate of solar energy
• Automatic Stop/Start for seamless operation
• Soft start protection extends the lifespan of the pump and components
• Overcurrent protection for safety and system longevity
• Max Water Submersion Depth: 50m
• Pump Isolation: IP68 (fully waterproof)
• Motor Speed: 500 – 4000rpm
• Discharge Size: 20mm
• Power: 750W
• Voltage: 72V DC
• VOC Max: 144V DC

Specifications:

• Max Flow: 1600L/h
• Max Head: 130m
• Water Delivery Capacity at Varying Head Heights:
  • 0m – 1600L/h
  • 55m – 1500L/h
  • 85m – 1250L/h
  • 95m – 1000L/h
  • 110m – 750L/h
  • 120m – 500L/h
  • 130m – 250L/h

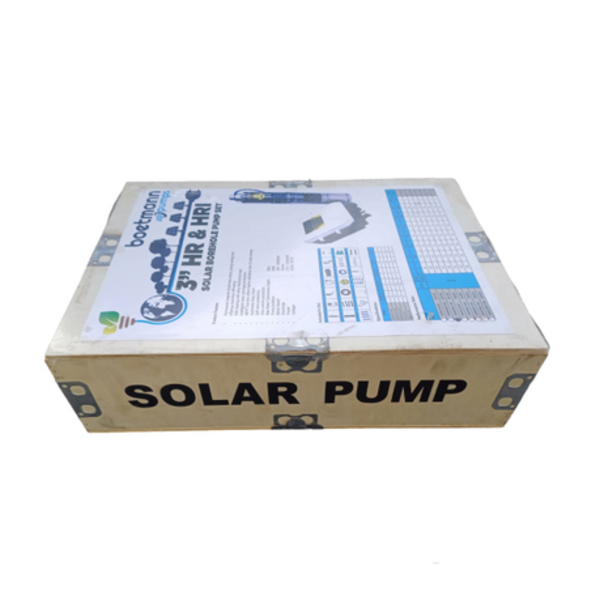

What's in the box:

• 1 x 750W Stainless Steel Solar Pump
• 1 x Control Box
• 1 x Spare Rotor
• 2 x Floats
• 1 x Waterproof Tape
• 1 x Insulation Tape
• 1 x Instruction Manual

The Boetmann Solar Submersible / Borehole Pump with Control Box - 750W - 140m is a high-performance solution designed for off-grid and remote water pumping applications. With its brush-less motor and permanent magnet technology, this pump delivers superior efficiency, maximizing power output while minimizing energy consumption. Ideal for agricultural irrigation, livestock watering, and domestic water supply, it operates efficiently in areas with limited or unreliable electricity access.

This solar-powered borehole pump is designed to handle extreme conditions, with IP68-rated waterproofing allowing for submersion depths of up to 50m. It features MPPT (Maximum Power Point Tracking) technology, ensuring optimal energy conversion from solar panels, even under varying sunlight conditions. The intelligent water shortage protection prevents the pump from running dry, safeguarding its motor and extending its lifespan.

With a maximum flow rate of 1600L/h and the ability to lift water up to 130m, this pump is built for deep boreholes and high-lift applications. Its automatic stop/start function, soft start protection, and overcurrent protection ensure smooth and safe operation.

The compact and lightweight design makes this pump easy to install and suitable for mobile applications, providing flexibility in its use. The included control box simplifies installation and allows for precise operation management. Additionally, the package includes a spare rotor, floats, waterproof tape, and insulation tape, ensuring a complete and hassle-free setup.
