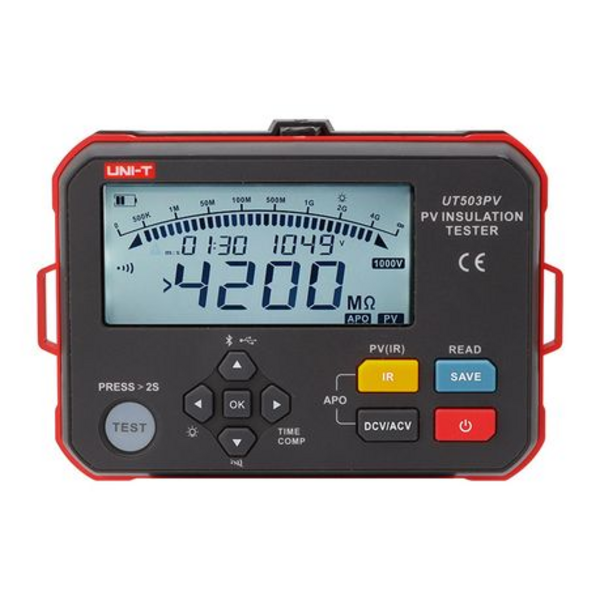

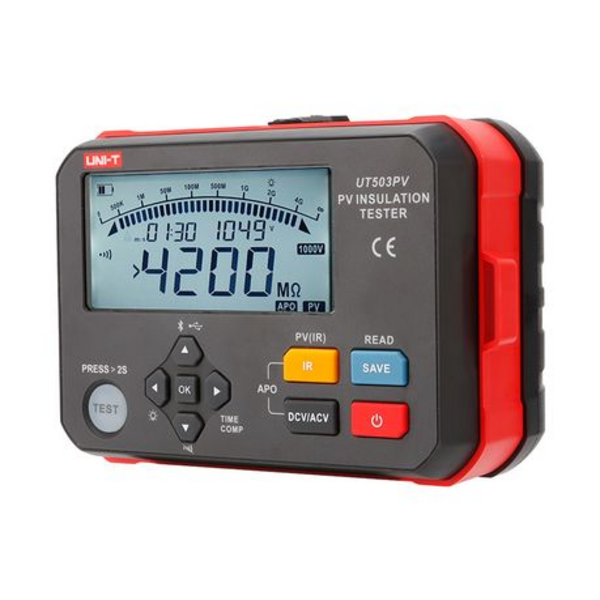

UNI-T UT503PV PV Insulation tester

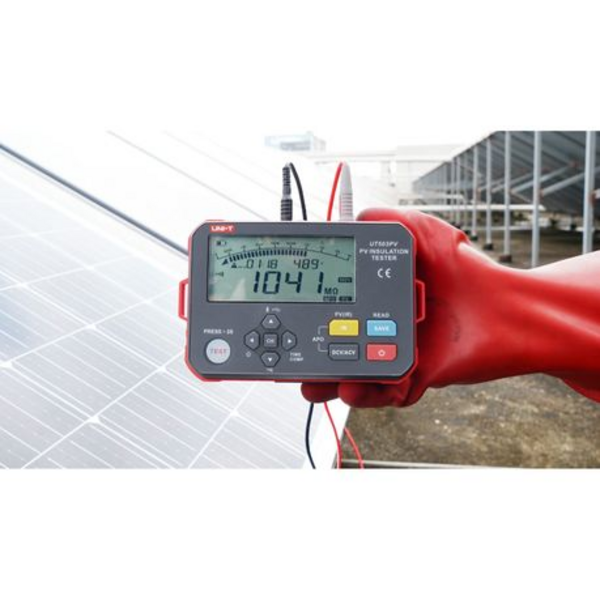

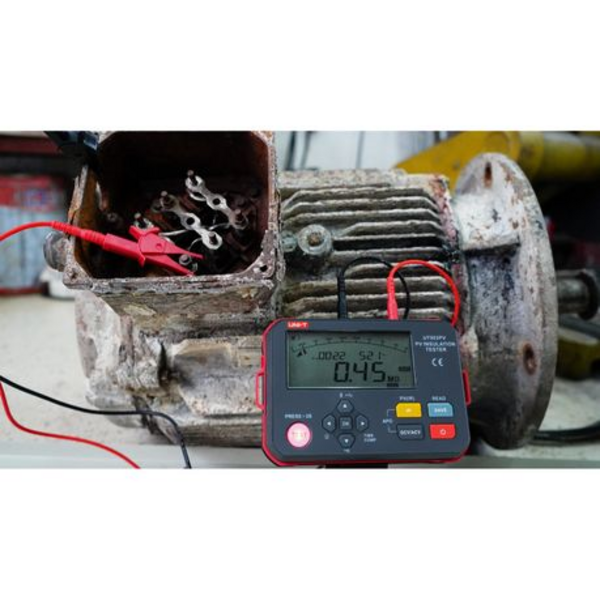

UT503PV PV insulation resistance tester has the function of measuring photovoltaic live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on

Features of UT503PV PV Insulation tester

Certifications (UT503PV series only): CE, cETLus

High output voltage: DC 1000V

Energized device test: DC 1000V

Insulation resistance (PV+IR): 4000M

Voltage measurement: 1000V DC & 600V AC

Auto discharge

Stepping voltage

Time measurement

Compare function (IR)

High voltage alarm

Data communication: USB cable + Bluetooth app

LR6 AA alkaline Batteries: 6 pc

Portable & Convenient

Specifications

Output voltage: 125V

-Insulation resistance

<1.51M

1.51M ~100.0M

100.1M ~1000M

Output voltage: 250V

-Insulation resistance

<1.51M

1.51M ~200.0M

200.1M ~2000M

Output voltage:500V

-Insulation resistance

<1.51M

1.51M ~1000M

1001M ~4000M

Output voltage:500V

-PV insulation resistance

<1.51M

1.51M ~1000M

1001M ~4000M

Output voltage:1000V

-Insulation resistance

<1.51M

1.51M ~1000M

1001M ~4000M

Output voltage:1000V

-PV insulation resistance

<1.51M

1.51M ~1000M

1001M ~4000M

Voltage measurement

- DC Voltage 5 1000V dc

- AC Voltage 5 600V ac

Short circuit current

IR measurement<1.5mAPV

IR measurement<1.2mA

-BacklightAuto & Manual backlight

- auto power off in 30

- Data storage1000 set

- Data Communication

x transmission via USB cable

x transmission via Bluetooth app

IPIP54(with cap closed)

CAT ratingCAT II 1000V,

CAT III 600V

CertificatesCE, UKCA

Disclaimer - This product is genuine and sourced from the authorised South African importer.

Seller is an independent reseller and is not affiliated with or endorsed by any third party claiming trademark rights.

What's in the box
1 x Manual
2 x Test lead line (1 black test line, 1 remote control test lead line)
1 x Lantern plug
1 x Red/black alligator clip
1 x Banana plug to MC4 plug test line
1 x Type-C cable
1 x Strap
6 x LR6 AA alkaline Batteries
1 x Charging stand (optional, model: UT-W13)
